About Our Product

Leading Stainless Steel Chain Pulley Block Suppliers In India

The noticeable features of the stainless steel chain pulley block are excellent finishing, high durability, and are maintenance-free. And for all these reasons our blocks have seized the market in India.

Most Trusted Manufacturers In India.

We are customer oriented company and focus on client satisfaction and for that we provide custom built products by understanding the specification of the clients.Uses of Stainless Steel Chain Pulley Block are in various industries like:
Chemical & Pharmaceutical industries, Food and beverage industry, FMCG industry, Production and Packaging Units, Pickling and acid tank treatments etc. Automobile Industry,Warehouses, Shipping Docks,Iron and steel Industry.

Call Us: +91 982-018-0331, +91 9136405874, +91 882-830-5874
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Team Of Highly Experienced Professionals

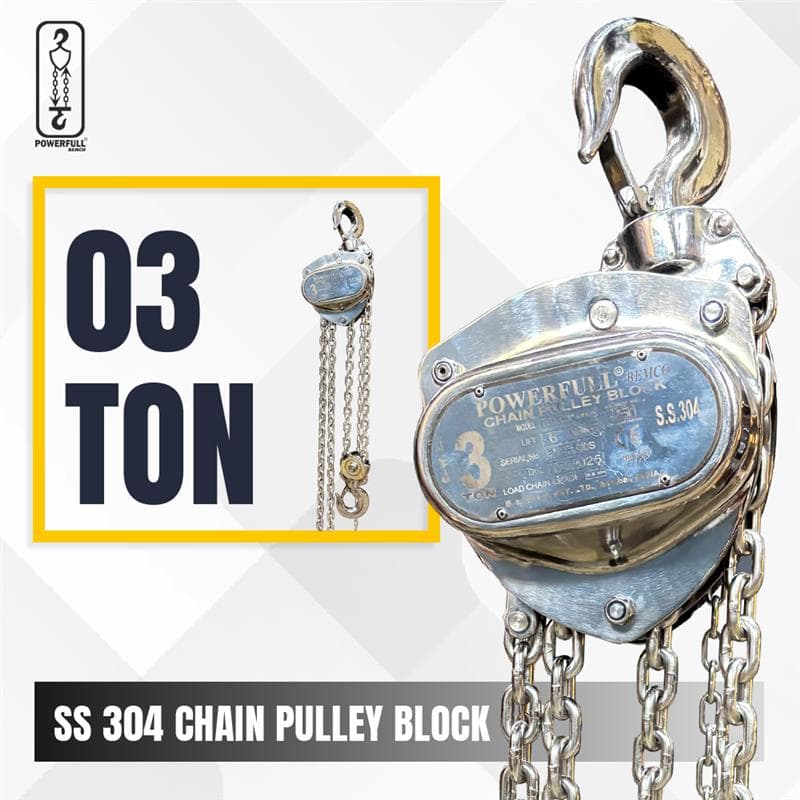

Features & Specifications

Stainless Steel Chain Pulley Block

Features & Specifications Of Our Product

  • Totally stainless steel body, Hand chain wheels , load wheels and all other components
  • Can be used with any type of manual lifting equipment
  • Bearings are dust protected and maintenance free
  • Used in offshore,Pharmacuetical Industries, Food and Breavarages, Clean Room, Corrosive atmosphere
  • All Components are of SS304 material
  • Optional M.O.C. SS316
  • 0.5 ton, 1 ton, 2 ton, 3 ton, 5ton
  • ISI Marked, CE Marked
  • Robust construction- easy to assemble and dismantle
  • Interchangeable Spares.
  • SS304 cast Hand chain wheels
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Features & Specifications

STAINLESS STEEL I-BEAM MOUNTED CHAIN PULLEY BLOCK

  • Interchangeable Spares. & Optional M.O.C. SS316 & Hob cut geared Trolley Wheels & SS304 cast Hand chain wheels.
  • Available up to 3ton capacity. & All Components are of SS304 material & Can be used with any type of manual lifting equipment.
  • Bearings are dust protected and maintenance free & Designed for using on Curved beams lower than 1200mm radius.
  • Robust construction- easy to assemble and dismantle & Trollies are suitable for tapered beams and straight beams.
  • Bent side plates for Wheel Protection from collision at beam ends & Adjustable in width to suit to the I-Beam flange width requirements.
  • Totally stainless steel: end plate hand chain wheel, trolley wheels, chain guides and all other components & Used in offshore, Pharmacuetical Industries, Food and Breavarages, Clean Room, Corrosive atmosphere.
Features & Specifications

Extra Low Head Room Chain Pulley Block With Trolley

  • Interchangeable Spares
  • Suitable for ultra low headroom
  • Available up to 2.0 Ton Capacity
  • Corrosion resistant components
  • Hob cut geared Trolley Wheels
  • SG iron cast Hand chain wheels
  • Robust construction- easy to assemble and dismantle
  • Designed for moving the trolley by pulling the chain in the downward direction to move the lifted load simultaneously
  • Trolley wheels are CNC machined for accuracy and running on ball bearings to minimize the frictional load–giving minimum effort for the operation
  • Evenly distributed load on four wheels for durability and least friction
  • Adjustable in width to suit to the I-Beam flange width requirements.
  • Suitable for areas wherein there are limitations of beam height and lifting of load upto highest point of suspension
  • Adjustable in width Also available with spark resistant features for explosive environments / hazardous area (Zone 1, Temp Class T3, Gas Group IIA , IIB) application to suit to the I-Beam flange width requirements.
Stainless Steel Chain Pulley Block
Stainless Steel Chain Pulley Block
Features & Specifications

Low Headroom Chain Pulley Block With Trolley

  • Suitable for lower headroom & Available up to 20 Ton Capacity.
  • Corrosion resistant components & Suitable for areas wherein there are limitations of beam height and lifting of load up to highest point of suspension.
  • Robust construction- easy to assemble and dismantle & Designed for moving the trolley by pulling the chain in the downward direction to move the lifted load simultaneously.
  • Trolley wheels are CNC machined for accuracy and running on ball bearings to minimize the frictional load–giving minimum effort for the operation & Hob cut geared Trolley Wheels.
  • SG iron cast Hand chain wheels & Interchangeable Spares. & Evenly distributed load on four wheels for durability and least friction.
  • Bent side plates for Wheel Protection from collision at beam ends & Adjustable in width to suit to the I-Beam flange width requirements.
  • Also available with spark resistant features for explosive environments / hazardous area (Zone 1, Temp Class T3, Gas Group IIA , IIB) application.
